Concertina SkyLouvre Retractable Roof

Concertina SkyLouvre Retractable Roof

The SkyLouvre Concertina was New Zealand’s first retractable roof louvre, with louvre fins that both rotate and retract. This sliding roof offers single touch retraction giving outdoor spaces control over sun, shade, and rain.

Designed and manufactured in New Zealand for New Zealand conditions, the Concertina is customisable to suit a wide range of residential and commercial applications. Each Concertina louvre bay can cover a 6m x 4m span, and be freestanding or supported on 1, 2 or 3 sides. Johnson & Couzins can design for specific requirements.

Louvre Fin Spans

jac-cr-1022

Concertina Canopy Option 1 – Section A

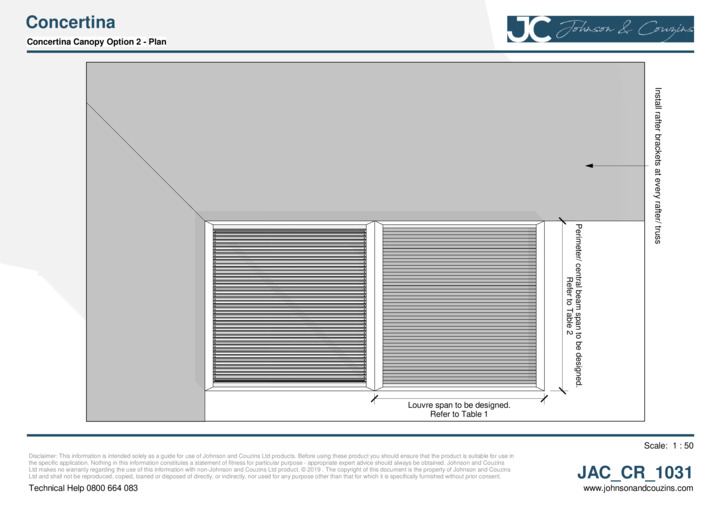

jac-cr-1031

Concertina Canopy Option 2 – Plan

Concertina Motor Location B-B

jac-cr-1023

Concertina Canopy Option 1 – Section B

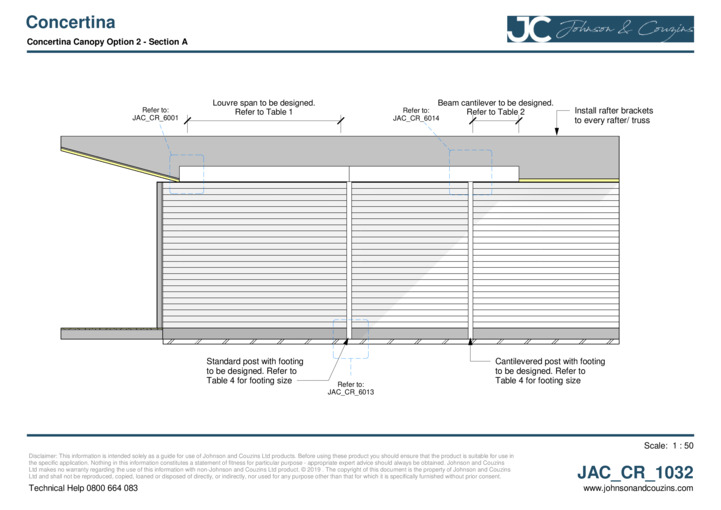

jac-cr-1032

Concertina Canopy Option 2 – Section A

TVTXL916A043

Teleco Dry Contact Transmitter

S4-03

Details – Truss Bracket Connection – Standard Soffit

jac-cr-1024

Concertina Canopy Option 1 – Front Elevation

Johnson & Couzins Silencio and Concertina Louvre Design Manual

jac-cr-1033

Concertina Canopy Option 2 – Section B

Teleco Dry Contact Transmitter Detail
